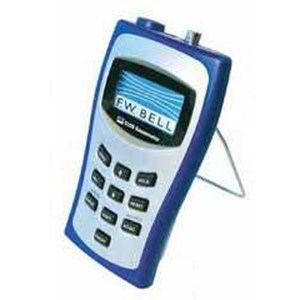

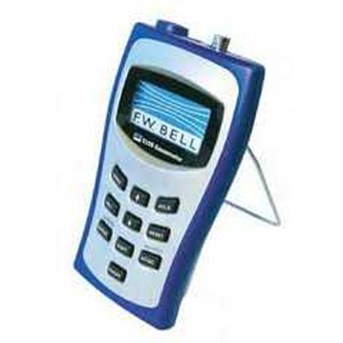

Digital Gaussmeter FW BELL 5100 AC/ DC

Digital Gaussmeter FW BELL 5100 AC/ DC The 5100 Series hall effect portable Gauss/ Tesla-Meters represent the recent design from the world leader in magnetic AC & DC measuring equipment. This new design incorporates the use of digital signal processing technology making it the world' s first hand-held gaussmeter to have a digital signal processor ( DSP) on board. F.W.Bell' s exclusive Dynamic Probe Connection allows measurements from 0 to 30 KG with basic accuracy of 1% . Typical applications include: Magnetic Testing & Classification, DC & AC Motor Testing, Magnetic Field Mapping, Residual Field Testing, Relay and Solenoid Inspection. All instruments are CE Compliant. The 5100 Series Hand-Held Gauss/ Tesla-Meters' built-in software eliminates the need for complex calibration procedures. User prompts on the custom formatted LCD allow fast, simple push button operation. • Auto Zero: Yes, Basic accuracy: 2% • Min/ Max: Yes, True RMS: Yes, Auto Range: YES, Sampling Rate: 4 Samples/ sec • Frequency Bandwidth: DC-20 KHZ, Ranges( 3) : Low Range: 200 G, Mid Range: 2 KG, High Range: 20 KG, Ultra Low Range( Low-field probe only) : 1 G • Resolution: Low Range: 0.1 G ( 10 uT) , Mid Range: 1.0 G ( 100 uT) , High Range: 10 G( 1 mT) , Ultra Low Range( Low-field probe only) : 1mG( 0.1uT) • Display: 3 1/ 2 digit LCD display, Readings: Either Gauss, Tesla • Operating Temperature 0oC To + 50oC & Storage: -25oC To + 70oC • 4 AA batteries or + 5VDC Regulator external adapter • size ( length* width* height) : 6.9 " ( 175.26mm) * 3.9 " ( 99.06mm) * 1.44 " ( 36.57mm)
